Application：

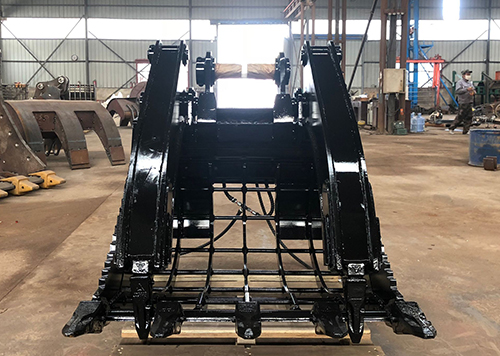

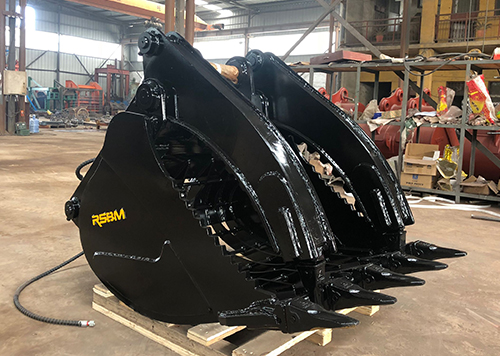

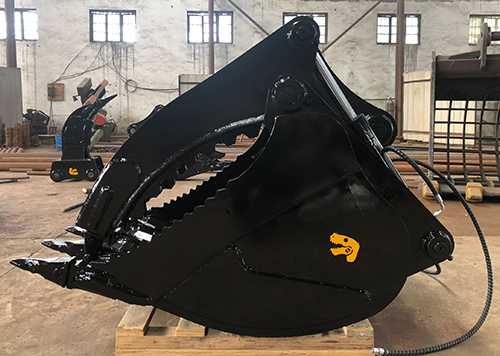

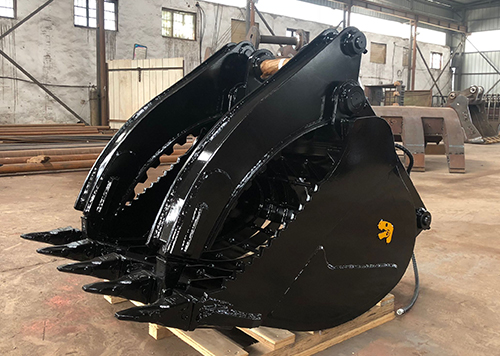

Hydraulic skeleton grab bucket is the grasping and screening device of a excavator, consisting of an assembly of jaws and mesh screen for grasping of loads and screening out materials. In some case, the bucket is used for transporting and for short-distance handling of loose and segmented loads, timber, rocks and the like. When used for loose materials, the bucket operates by digging under and closing on the load. To facilitate picking up material, the jaws of the bucket are equipped with teeth. In others, the bucket is also used to separate soils and rocks. When used for separating, the dipper arm runs by retracting back to shake the materials in the bucket.
Bucket Information：
· Sent to-Sydney, Australia
· Made for-grab and screen various materials
· Fit Machine-2014 Doosan DX140LC

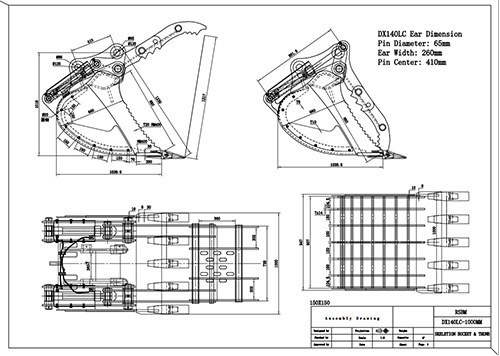

· Ear Dimensions-pin diameter 65mm, between ears 260mm , pin centers 410mm
· Specs-1000mm wide, 1200mm jaw opening, 150×150 mesh spacing
Design：
Bucket has been designed into a 3 in 1 attachment with three functions of grabbing, digging and digging. Besides the purpose of those, RSBM also made the bucket to meet customer’s requirements of high grade of steel, standard size ground engaging teeth in Australia, hardened hitch pins and hydraulic hoses.
Dispatch：
Along with the skeleton grab bucket, trenching bucket and ripper for same machine reached Sydney at the early of December in 2019.
Post time: Jan-25-2021
