Application:

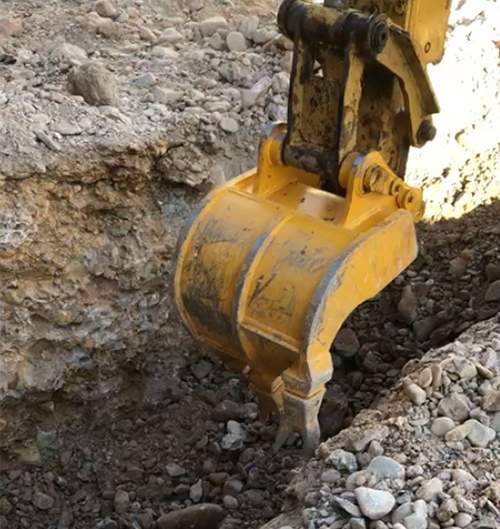

Multi ripper bucket is used for ripping and digging in soil-rock mixed up environment. Generally, when used in frozen earth or multiple rocks, operators have to rip the ground with a single tyne ripper or hydraulic breaker with an excavator and load with bucket. The bucket fuses single tyne ripper and common bucket into together perfectly. It allows the operators to load as the materials is ripped.
Bucket Information:
· Sent to-Mexico
· Made for-break and load
· Fit Machine-CAT416D
· Ear Dimensions-front pin 50mm, rear pin 45mm; front between ears 254mm , rear between ears 204mm; pin centers 345mm
· Specs-450mm wide, 25mm thick on cutting edge, NM500 steel material, ESCO U40 teeth on
Design:

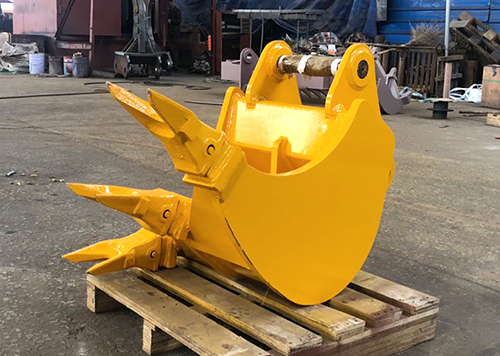

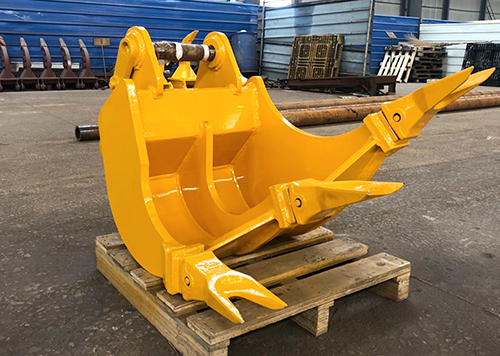

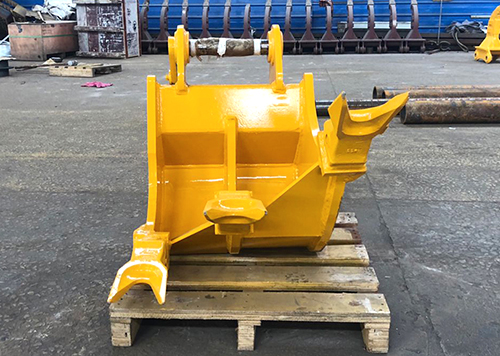

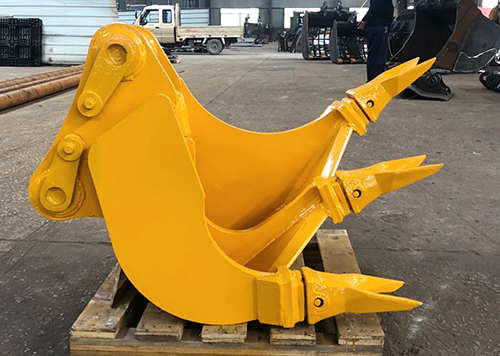

The bucket is designed with 3 shanks on an arc and tiger teeth. The staggered shanks hit the ground in order which allows the operators rip smoothly and easily compared to common teeth in a level. Also, the tooth is 10 times faster than single tyne ripper when it is ripping. The 3 tiger teeth force are about as 8 times as a standard 5-tooth bucket because the shanks are short. Take the advantage of RSBM bucket, operators are able to load the material as it is being ripped, that enhances efficiency greatly.
Dispatch：

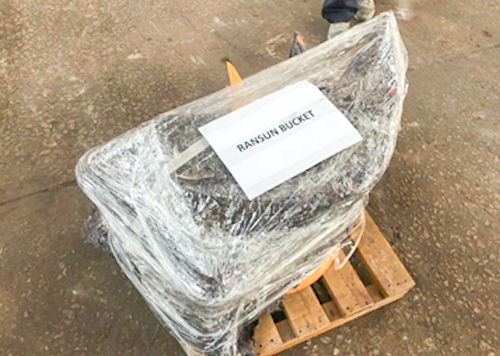

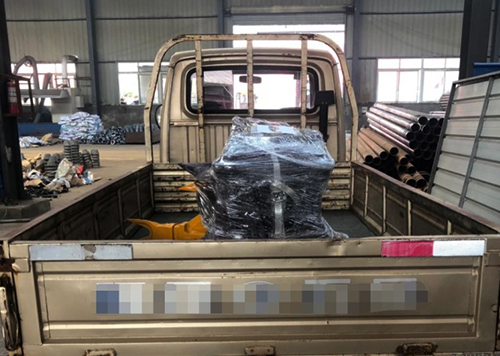

The bucket was packed with wrap placing on the pallet and shipped to Mexico in 2018.

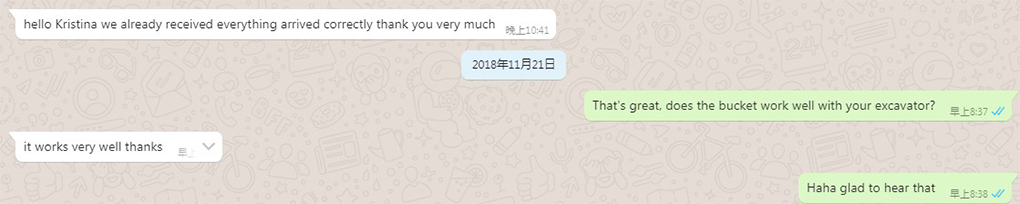

Feedback From Customer:
Post time: Jan-25-2021
