Application:
The excavator mud bucket is also called the dredging bucket. It has no teeth and has a large width.The mud bucket is suitable for the surface trimming of slopes with large capacity, and the dredging of rivers and ditches to improve work efficiency.It has the characteristics of a flat bucket and has a large capacity.
Bucket Information:
· Sent to-Melbourne , Australia
· Made for-dredging work
· Fit Machine-KOMATSU PC300-5
· Ear Dimensions-pin diameter 90 mm, between ears-346 mm, pin centers-513 mm
· Specs-2500mm wide, 1750kgs, without ear plate
Design:

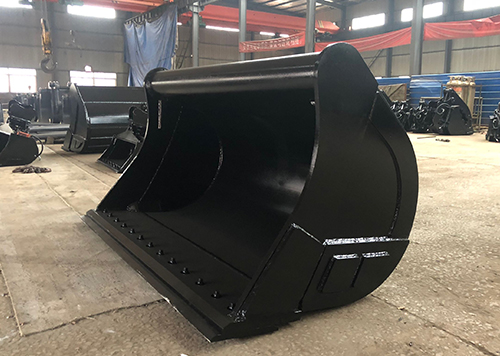

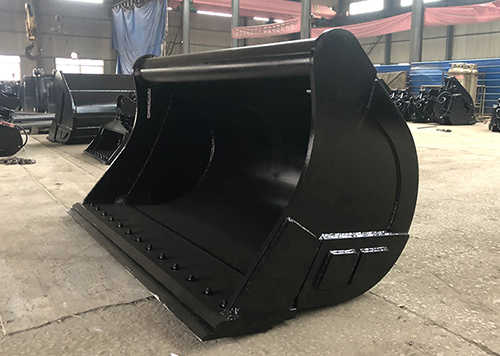

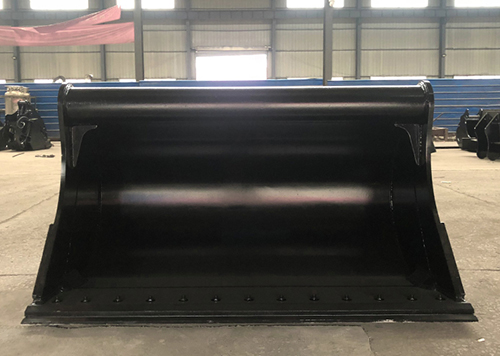

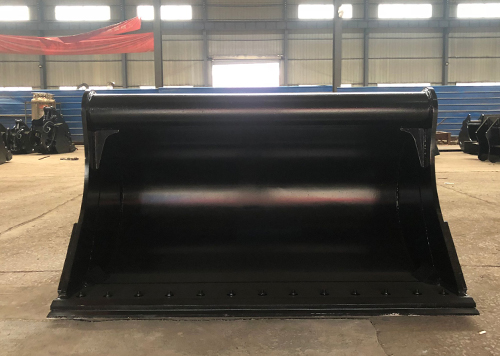

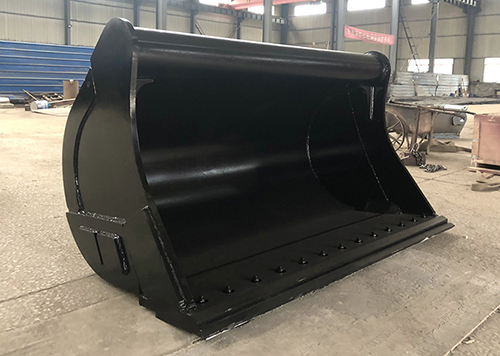

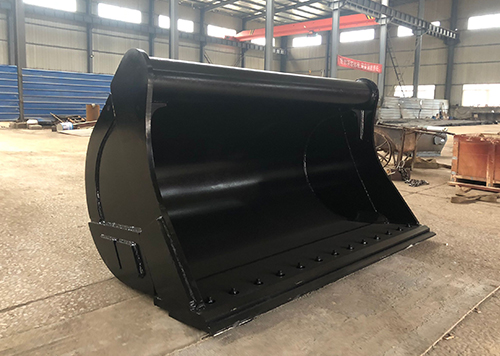

The mud bucket uses double changes cutting edges, fixed with bolts.Customers want their own special ear plates, so we did not weld the ear plates to the mud bucket.
Post time: Jan-25-2021
