Excavator Parts Hydraulic Rotary Horizontal Drum Cutter
An attachment for excavator with rotating drum-shaped base equipped with picks for cutting tough rocks, concrete or frozen ground.
Applied Size - From 1 to 50 tons (Could be larger for customization).
Characteristic:
a. The hydraulic motor inside provides a high rotating speed for cutting in a short time.
b. The design gives this type of cutter the ability to work underwater without any extra modification.
c. The picks, with high wear-resistance and excellent changeability, could stand on a great number of excavating duties without breaking.
Main features:
a. Robust - long-lasting, low maintenance.
b. Strong - maximum cutting power to penetrate the rock.
c. Reliable - direct drive cutting technology.
Application:
Drum cutter does an excellent job in cutting solid materials such as rock, asphalt, frozen ground in fields as trenching, installing, etc.
a. Trench and pipeline construction.
b. Demolition and concrete work.
c. Rock breaking in the mining site.
d. Contouring, profiling, building renovation.
e. Tunnel construction.
| Drum Cutter | |||||||
| Technical Data | UNIT | RSBM-05 | RSBM-10 | RSBM-15 | RSBM-30 | RSBM-40 | RSBM-50 |
| Carrier weight class | ton | 3-7 | 7-15 | 12-18 | 20-33 | 25-40 | 35-50 |
| Service weight | kg | 390 | 420 | 800 | 1,750 | 1,850 | 24,500 |
| Oil flow rate | 1/min | 49-90 | 75-124 | 109-170 | 190-320 | 190-320 | 275-410 |
| Max.operating pressure | bar | 350 | 350 | 350 | 350 | 350 | 350 |
| Rotational speed | rpm | 90-160 | 80-135 | 60-110 | 60-90 | 50-90 | 55-85 |
| Max.cutting force@350bar | N | 17,800 | 23,200 | 36,200 | 58,200 | 69,900 | 81,800 |
| Max.Torque@350bar | NM | 3,150 | 5,200 | 10,400 | 19,500 | 23,400 | 27,800 |
| Max.rock hardness | MPa | 25 | 40 | 50 | 70 | 80 | 100 |

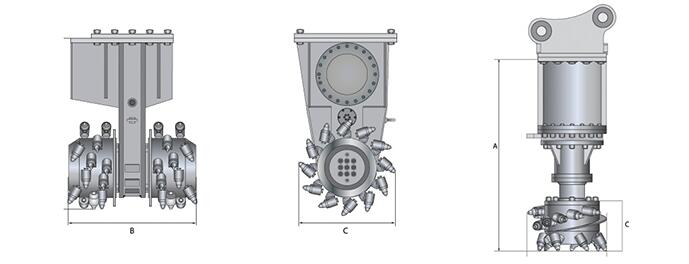

| Length of rock grinder | A | 740 | 740 | 990 | 1,200 | 1,200 | 1,300 |
| Widith of grinder head | B | 615 | 660 | 730 | 880 | 920 | 950 |
| Diameter of grinder head | C | 370 | 370 | 560 | 670 | 670 | 710 |
| Number of picks | PC | 64 | 64 | 48 | 48 | 48 | 56 |
| Pick shank diameter | mm | 20 | 20 | 25 | 30 | 30 | 30 |
Above specification can be changed without a previous notice for improvement in quality
| BRAND | MODELS |
| CASE | CX130, CX130B, CX135SR, CX17B, CX160B, CX210B, CX225SR, CX240B, CX27B, CX290B, CX31B, CX330B, CX350B, CX36B, CX460, CX50B, CX75SR, CX80, 9050B, CX31B, C, 36B, CX25, CX31, CX36 |
| HITACHI | EX27, EX35, EX100, EX120, EX130, EX135, EX200, EX210, EX220, EX230, EX300, EX370, EX400, EX550, EX55UR-3, EX58, EX60-1, EX700, EX750, EX75, EX80U, EX90, ZX110, ZX120, ZX135US, ZX140W-3, ZX160, ZX17U-2, ZX180LC-3, ZX200, ZX210, ZX225, ZX230, ZX240LC-3, ZX250LC-3, ZX270, ZX30-U2, ZX330, ZX35U, ZX40U, ZX400-3, ZX450-3, ZX50-2, ZX50U-2, ZX60, ZX600, ZX650-3, ZX60USB-3F, ZX70, ZX70-3, ZX75US, ZX80, ZX80LCK, ZX800, ZX850-3 |
| JCB | 2CX, 3C, 3CX, 4CX, 8018, JCB8040 |
| JOHN DEERE | JD120, JD160, JD200, JD240, JD270, JD315SJ, JD330 |
| KOMATSU | PC10, PC100, PC110R, PC120, PC1250, PC130, PC135, PC138, PC150-5, PC160, PC200, PC220, PC228US, PC270, PC300, PC360, PC400, PC450, PC550, PC650, PC1000, PC1200 |
| KUBOTA | KU45, KX-O40, KX080-3, KX101, KX121, KX151, KX161, KX41, KX61, KX71-2, KX91, KX61-2S, KX91-3S |
| CATERPILLAR | 302.5C, 303, 304, 305, 307, 308, 311, 312, 314, 315, 320, 322, 324DL, 325, 328D, 329D, 330, 330B, 330C, 330D, 330E, 330GL, 336D, 345, 345CL, 345F, 350, 416, 420, 428 |
| DAEWOO | S015, S035, S130, S140, S175, S180, S210, S220, S225, S280, S290, S300, S320, S330, S340LC-V, S35, S370LC-, S400 |
| DOOSAN | DX27, DX35, DX140, DX140W, DX180LC, DX225LC, DX255LC, DX300, DX340LC, DX420LC, DX480LC, DX520LC, DX55/60R, DX80 |
| HYUNDAI | R110-7, R120W, R130, R140, R145, R15, R16, R160, R170, R180, R200, R210, R220LC, R235, R250, R280R290, R320, R35, R350, R360, R380, R420, R450LC, R480LC-9, R500, R520, R55, R60CR-9, R75-5, R80 |
| KOBELCO | SK025, SK027, SK030, SK032, SK035, SK040, SK045, SK050, SK070, SK075, SK100, SK120, SK125, SK135, SK140, SK170, SK200, SK210, SK220, SK225SR-2, SK235SRLC, SK250, SK300, SK30, SK320, SK330, SK350, SK400, SK480 |
| LIEBHERR | 922,924 |
| SAMSUNG | SE130LC, SE200, SE210LC, SE280LC, SE350LC |
| SUMITOMO | SH120, SH125X-3, SH135X, SH160-5, SH200, SH210, SH220, SH225, SH240, SH300, SH450 |
| VOLVO | EC140, EC145C, EC160, EC180C, EC210, EC240, EC290, EC330, EC360, EC460, EC55, EC88, ECR58, ECR88, EW130, EW170, MX135WS/LS, MX175WS, MX225LS, MX255LS, MX295LS, MX365LS, MX455LS, MX55/W, SE130LC-3, SE130W-3, SE170W-3, SE210LC-3, SE240LC-3, SE280LC-3, SE360LC-3, SE460LC-3, SE50-3, EC700C |
| YUCHAI | YC15, YC18-2, YC18-3, YC25-2, YC30-2, YC35, YC45-7, YC55, YC60-7, YC65-2, YC85, YC135 |
